Topping - L50

15999.00
18999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Chi-Fi
          Excellence

          1 Year of
          Warranty

          Ideal for
          Audiophiles

          Ideal for
          Indoor Use

          For Studio &
          Professionals

          Connect With
          RCA

          2x 2800mW @ 32Ω
          Power Output

          Volume
          Controls

          DESCRIPTION

          FEATURING THE NEW NFCA CIRCUIT FOR NOISE-FREE, HI-RES AUDIO

          The Topping L50 features the latest redesigned NFCA circuit based on the working principle of the A30 Pro. The NFCA circuit provides 2 times the power compared to the previous generation of the circuit. This circuit also has an ultra-low noise floor of 0.3uV and offers an excellent dynamic range. These features enable the L50 to transmit audio at Hi-Res quality.
          TOPPING - L50

          Headphone-Zone-TOPPING-L50
          Headphone-Zone-TOPPING-L50
          Headphone-Zone-TOPPING-L50

          THREE-LEVEL GAIN SWITCH TO POWER HEADPHONES WITH VARYING IMPEDANCE

          The Topping L50 is capable of powering various headphones with high impedance. The device offers high output voltage with 3500mW of power, sufficient to drive the most power demanding headphones while delivering less than 0.1 Ohms of output impedance with negligible levels of background noise. L50 also features a three-level gain switch allowing you to tune it according to the requirement of the connected headphones. L50 covers a wide gain range, which is sufficient to meet the needs of low-sensitivity full-sized over-ears to high-sensitivity IEMs. L50 is perfectly suitable to power many headphones.

          Headphone-Zone-TOPPING-L50
          Headphone-Zone-TOPPING-L50
          Headphone-Zone-TOPPING-L50
          Headphone-Zone-TOPPING-L50

          INPUT PASS-THROUGH FUNCTIONALITY FOR SPEAKERS AND MONITORS

          Topping L50 offers a well thought out input pass-through functionality. Input pass through functionality comes in handy when using the device with active monitor speakers. What this function does is, it bypasses the input signal and it is directly routed to output to the RCA or TRS pass-through ports without the need for amplification. It works even when the L50 is turned off, without the amplification capabilities.

          Headphone-Zone-TOPPING-L50
          Headphone-Zone-TOPPING-L50

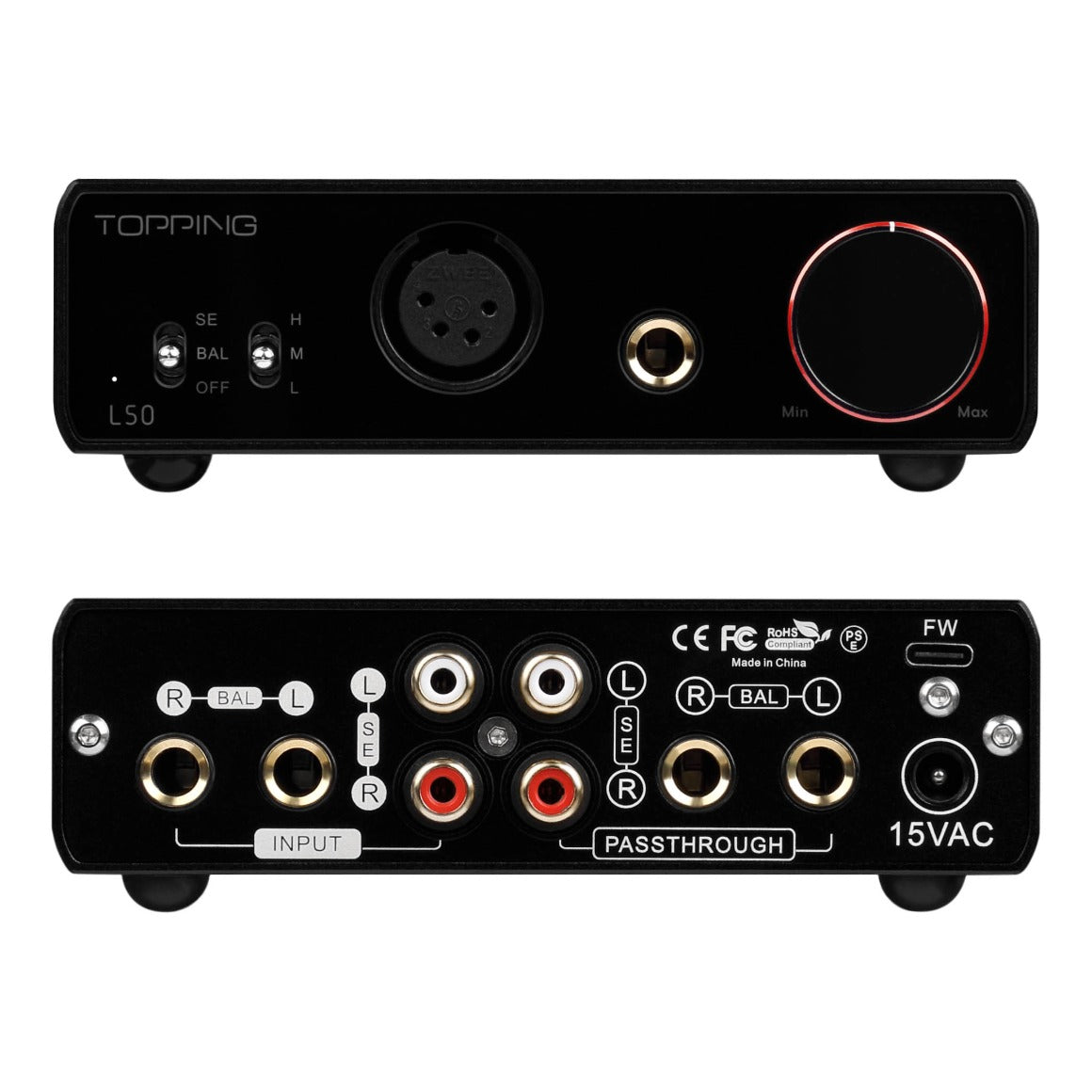

          EQUIPPED WITH SINGLE-ENDED AND BALANCED INPUT AND OUTPUT CONNECTIONS

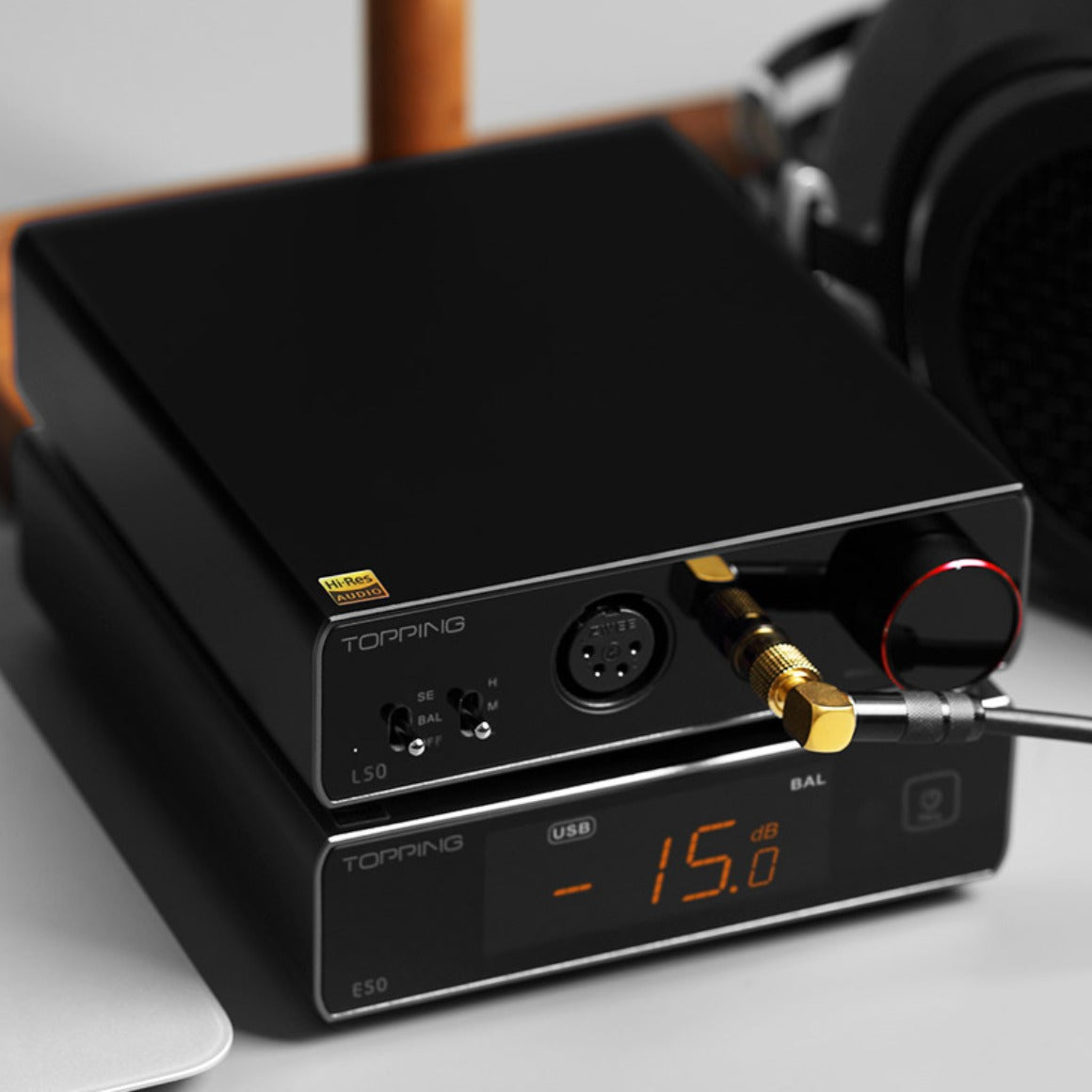

          Topping L50 offers both single-ended as well as balanced input/output options. You can pair the L50 with the latest E50 Desktop DAC and use the TRS balanced or RCA single-ended input/output function, it also has input pass through RCA and TRS ports. For headphones, the L50 has a 4-pin XLR balanced and 6.35mm single-ended ports.

          Headphone-Zone-TOPPING-L50
          Headphone-Zone-TOPPING-L50
          Headphone-Zone-TOPPING-L50
          Headphone-Zone-TOPPING-L50

          SPECS

          L50 HEADPHONE AMPLIFIER SPECIFICATION
          THD+N@1kHz (A-wt) < 0.00006% @ 780mW, 32Ω
          < 0.00006% @ 333mW, 300Ω
          THD @20-20kHz (90KBW) < 0.00008% @ 780mW, 32Ω
          < 0.00008% @ 76mW, 300Ω
          SNR MAX OUT 1kHz (A-wt) 145dB
          SNR 50mV OUT 1kHz (A-wt) 104dB
          DYNAMIC RANGE @1kHz (A-wt) 145dB
          FREQUENCY RESPONSE 20Hz - 40kHz (±0.05dB)
          OUTPUT LEVEL 35Vpp @ G=L
          35Vpp @ G=M
          37Vpp @ G=H
          AP MEASURED NOISE LEVEL < 0.7uVrms @ G=L
          < 0.7uVrms @ G=M
          < 1.2uVrms @ G=H
          ACTUAL NOISE LEVEL <0.3uVrms @G=L
          <0.3uVrms @G=M
          <1.0uVrms @G=H
          *Note : The actual noise level is obtained by boosting the noise of L50 by 40dB using a low noise amplifier in front of the APx555B then dividing the measured noise by 100 times.
          CHANNEL CROSSTALK @1kHz -119dB
          INPUT SENSITIVITY 60Vrms @ G=L
          12Vrms @ G=M
          2.7Vrms @ G=H
          GAIN -14.3dB @ G=L
          -0.1dB @ G=M
          13.9dB @ G=H
          OUTPUT IMPEDANCE < 0.1Ω
          OUTPUT POWER 2x 3500mW @ 16Ω, THD+N < 0.1%
          2x 2800mW @ 32Ω, THD+N < 0.1%
          2x 2000mW @ 64Ω, THD+N < 0.1%
          2x 540mW @ 300Ω, THD+N < 0.1%
          2x 290mW @ 600Ω, THD+N < 0.1%
          ADAPTER IMPEDANCE > 8Ω
          L50 PRE-AMP SPECIFICATION
          THD+N@1kHz (A-wt) < 0.00006% @ 780mW, 32Ω
          < 0.00006% @ 333mW, 300Ω
          THD @20-20kHz (90KBW) < 0.0001% @ 780mW, 32Ω
          < 0.0001% @ 76mW, 300Ω
          SNR MAX OUT 1kHz (A-wt) 140dB
          SNR 50mV OUT 1kHz (A-wt) 104dB
          DYNAMIC RANGE @1kHz (A-wt) 140dB
          FREQUENCY RESPONSE 20Hz - 40kHz (±0.1dB)
          OUTPUT LEVEL 6.6Vpp @ G=L
          35Vpp @ G=M
          37Vpp @ G=H
          AP MEASURED NOISE LEVEL < 0.7uVrms @ G=L
          < 0.7uVrms @ G=M
          < 1.2uVrms @ G=H
          ACTUAL NOISE LEVEL <0.3uVrms @G=L
          <0.3uVrms @G=M
          <1.1uVrms @G=H
          *Note : The actual noise level is obtained by boosting the noise of L50 by 40dB using a low noise amplifier in front of the APx555B then dividing the measured noise by 100 times.
          CHANNEL CROSSTALK @1kHz -113dB
          INPUT SENSITIVITY 12.7Vrms @ G=L
          12Vrms @ G=M
          2.7Vrms @ G=H
          GAIN -14.5dB @ G=L
          -0.3dB @ G=M
          13.7dB @ G=H
          OUTPUT IMPEDANCE < 0.1Ω
          OUTPUT POWER 2x 3500mW @ 16Ω, THD+N < 0.1%
          2x 2800mW @ 32Ω, THD+N < 0.1%
          2x 2000mW @ 64Ω, THD+N < 0.1%
          2x 540mW @ 300Ω, THD+N < 0.1%
          2x 290mW @ 600Ω, THD+N < 0.1%
          ADAPTER IMPEDANCE > 8Ω
          Second Row

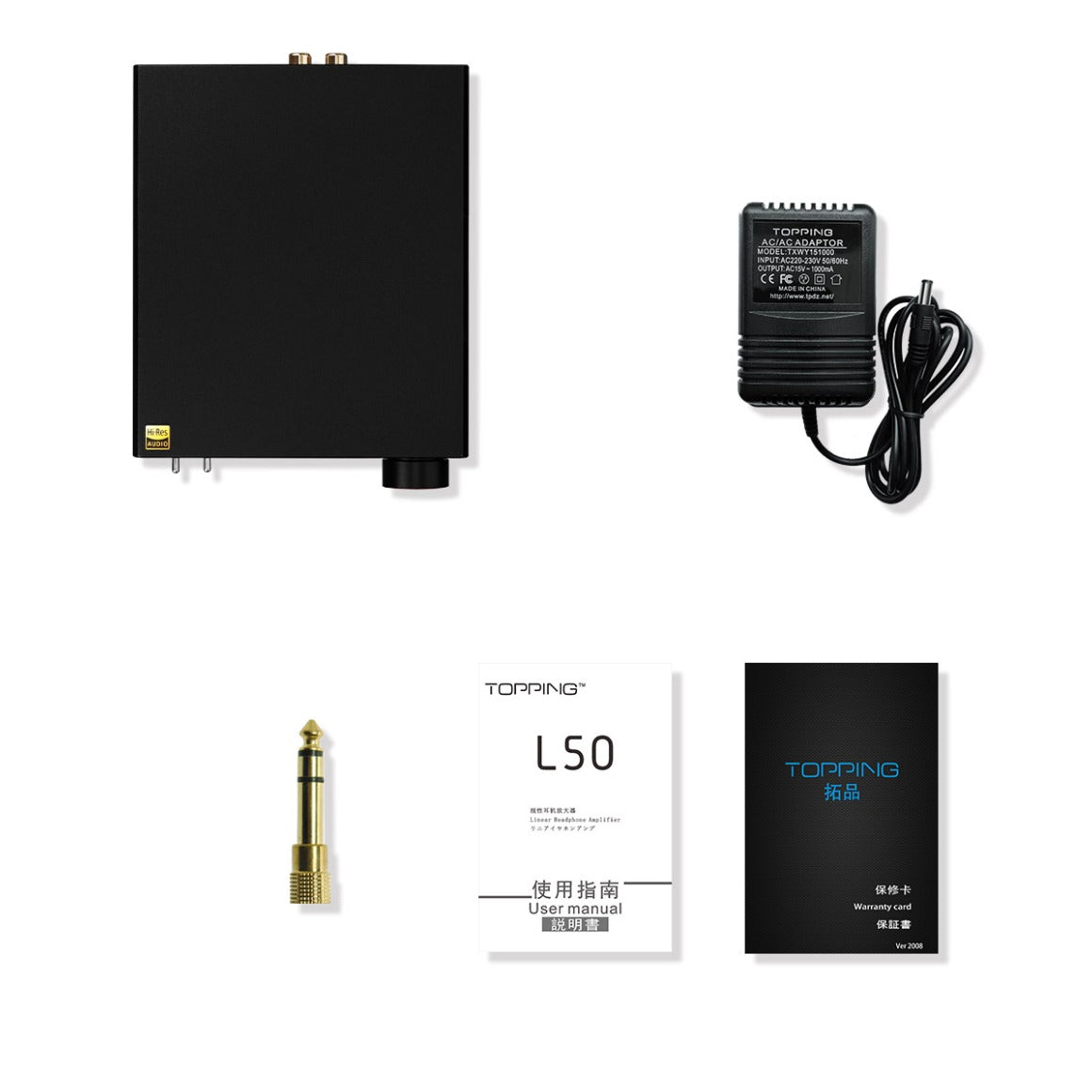

          IN THE BOX
          BOX CONTENTS 1. TOPPING L50
          2. AC Adapter
          3. 6.35mm to 3.5mm adapter
          4. User Manual
          5. Warranty card


          Headphone-Zone-TOPPING-L50

          Headphone-Zone-TOPPING-L50

          FAQs

          Warranty & Media Reviews

          1 Year Warranty

          Don't sweat it, this TOPPING L50 comes with a 1 year warranty on the Amp/DAC and 6 months warranty on the battery. TOPPING's warranty covers all manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

          Read more about TOPPING's warranty in India.

          PRIMEAUDIO

          'The L50 amp is an update to the popular L30 headphone amp.The L50 headphone amp now has both single-ended and balanced outputs plus a pass-through mode'

          Read More
