DESCRIPTION
FIRST LARGE-SIZED TOROIDAL TRANSFORMER, CLEAR HIGH-QUALITY SOUND

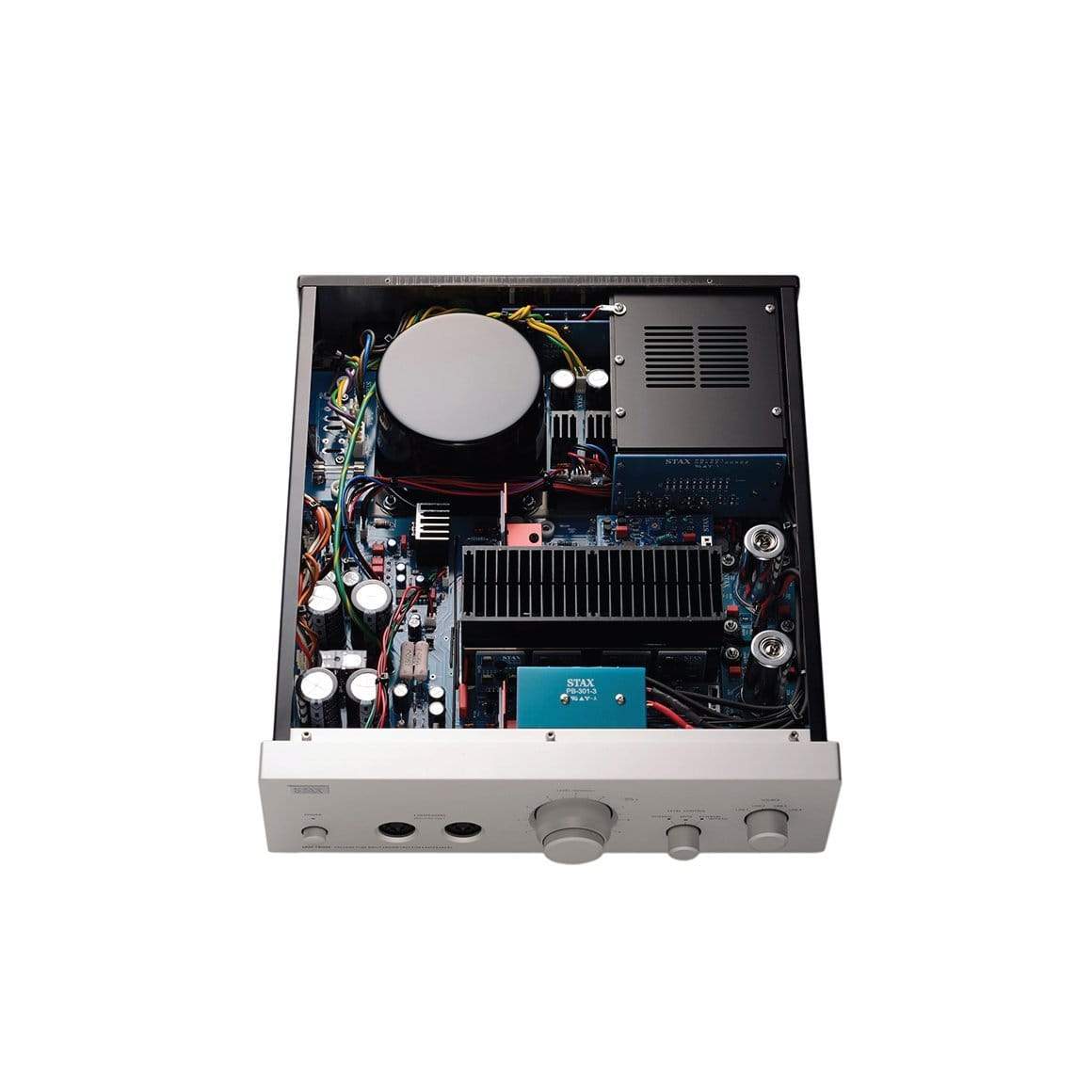

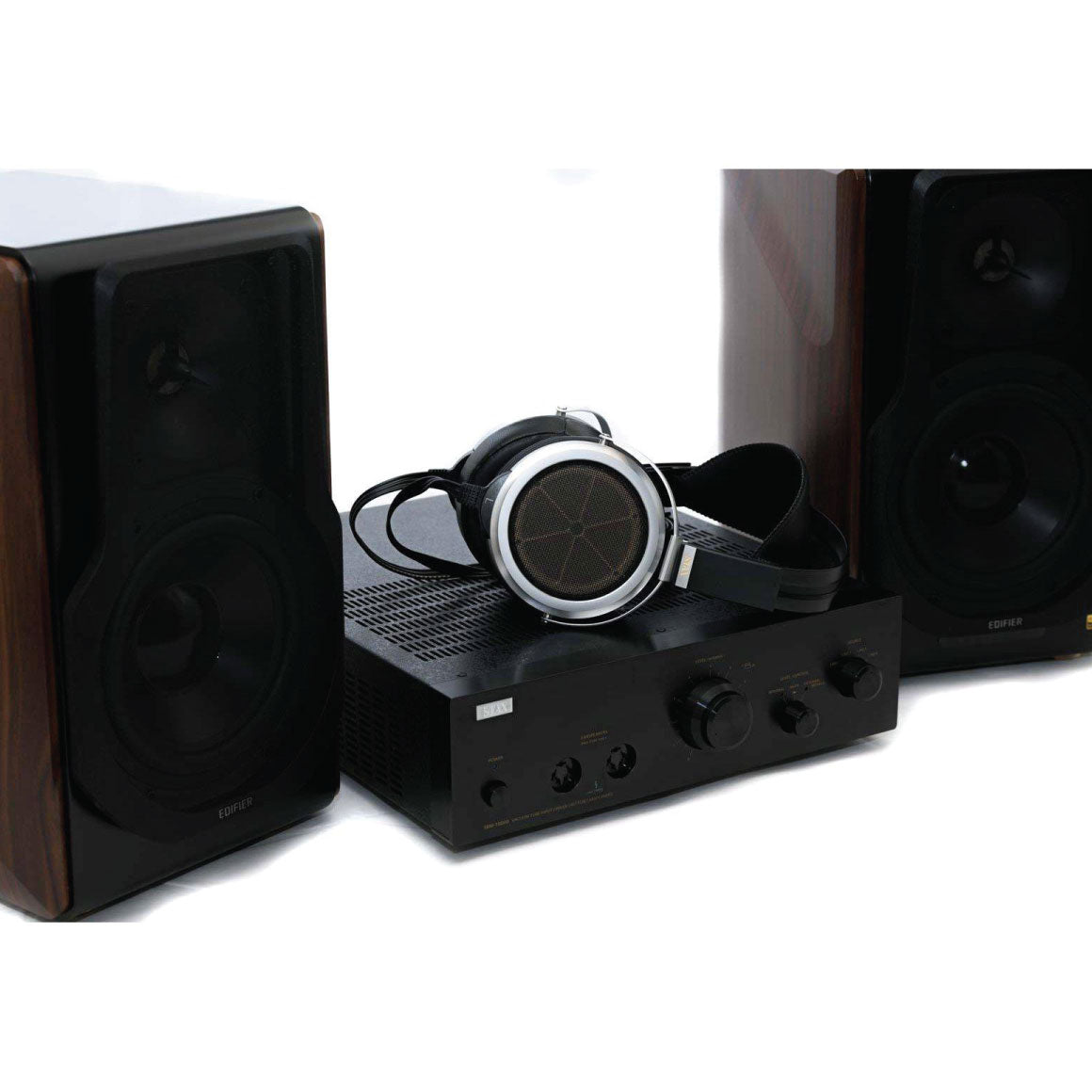

The SRM-T8000 is the first driver unit by STAX that has a large-sized Toroidal Transformer. This reduces the leakage flux and helps in keeping noise low. It also leads to high-speed reproduction of sound across a wide frequency range. The SRM-T8000 uses a 6922 dual triode tube. These high-quality tubes are mounted on an independent board to eliminate vibration and noise.



STAY CONNECTED, HIGH-GRADE MATERIALS & LIGHTWEIGHT AND BEAUTIFUL

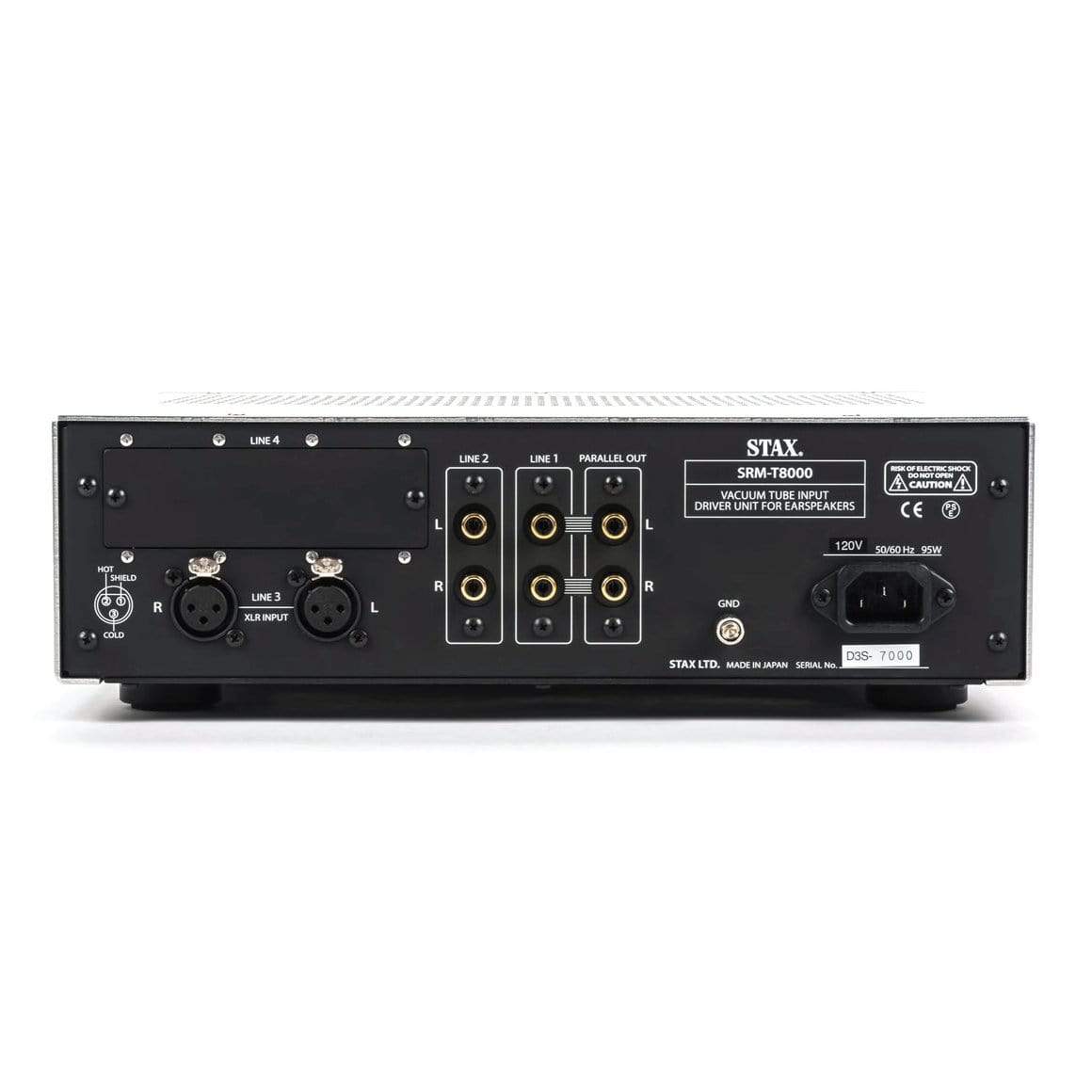

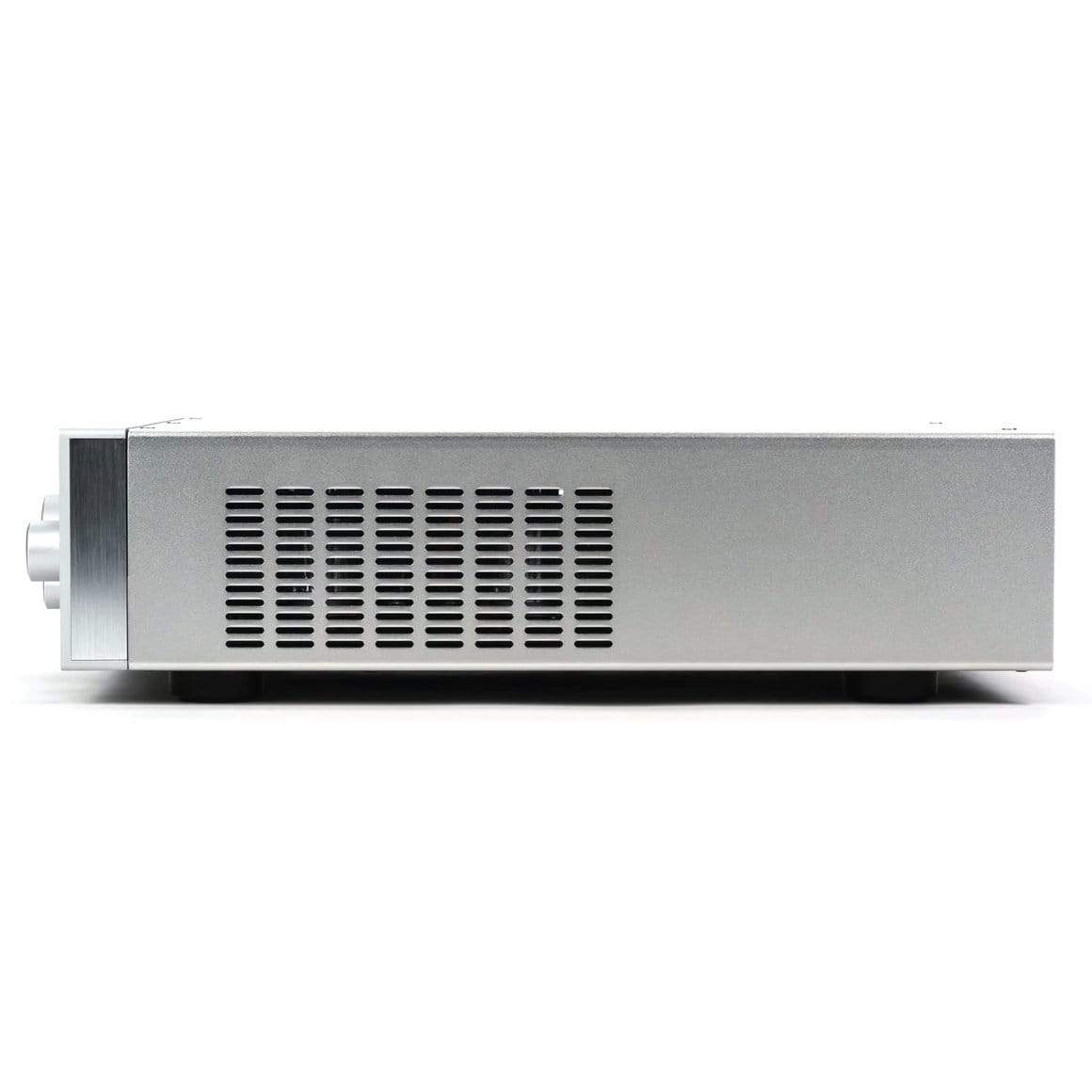

Now you can easily connect your earspeakers with this driver with 4 pairs of input (the fourth one is optional). These can bypass the volume controller letting you use the SRM-T8000 as an exclusive power amplifier. What does combining an aluminium insulator, vibration-proof material and high frictional coefficient lead to? Well, a really high amount of friction power. This, and other high-quality electronic parts, together give you great tone quality and performance. Unlike most driver units that have an iron chassis, the SRM-T8000 has a non-magnetic aluminium chassis. This has made the unit lighter while eliminating a cloudy tone quality. The aluminium also adds to its sleek look.




SPECS
FREQUENCY RESPONSE | 1~115kHz per channel |
TOTAL HARMONIC DISTORTION | <0.01% @1kHz per channel |
GAIN | 60dB |
INPUT IMPEDANCE | Unbalanced 50kΩ/ Balanced: 50kΩx2 |
MAX. OUTPUT VOLATGE | 470V r.m.s./1kHz |
HEADPHONE OUTPUT | Stax PRO bias output x2ation, Pure balance DC amplifier configuration Earspeaker driver unit |
ANALOG INPUT | RCA x2、XLR x1 |
RATED INPUT LEVEL | 100mV/100V |
VACUUM TUBE | 6922 x2 |
POWER CONSUMPTION | 95W(58W when idle) |
VOLATGE | 120V/60HZ |
EXTERNAL DIMENSIONS | 320(W)×103(H)×395(D)mm / 12.6' x 4' x 15.6' |
WEIGHT | 7.3kg / 16.1 lbs |
BOX CONTENTS | 1. Stax SRM-T8000 Driver Unit |
