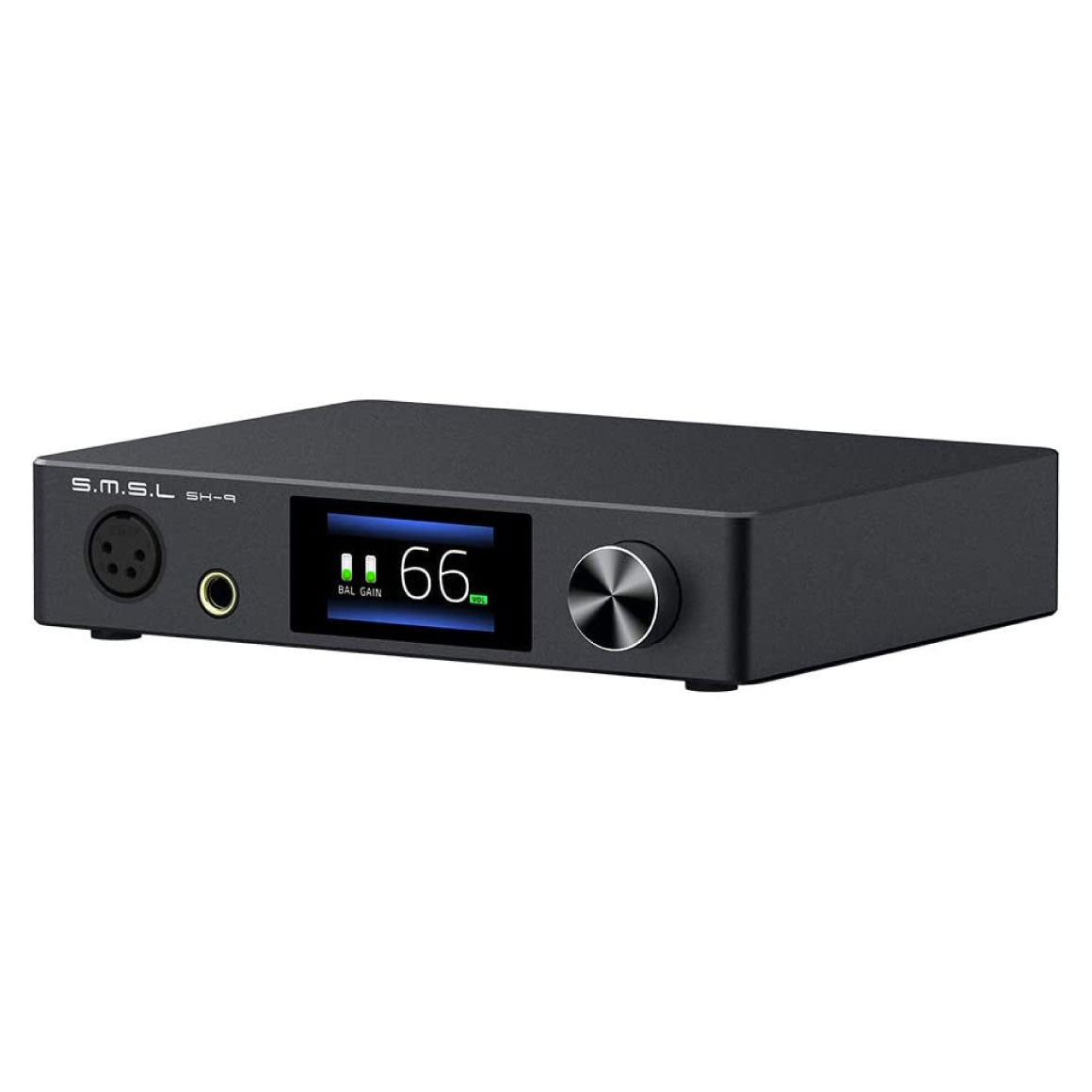

S.M.S.L - SH-9

28999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Chi-Fi
          Excellence

          1 Year of
          Warranty

          Ideal for
          Audiophiles

          Ideal for
          Indoor Use

          For Studio &
          Professionals

          4-Pin XLR
          Balanced Output

          Connect With
          3-Pin XLR & RCA

          3W x 2 @ 32Ω
          Power Output

          Volume
          Controls

          DESCRIPTION

          THXAAA-888 HEADPHONE AMP  POWERED WITH THE THX AAA TECHNOLOGY

          Adopting the certified THX-888 module, the SMSL SH-9 delivers exceptional sonic performance empowering you to access high fidelity sound at your convenience. Moreover, the use of patented feed-forward error correction topology reduces colouration and distortion so that you get to experience pure, natural sound. The combination of THX-certified THXAAA-888 circuit, Bipolar linear amplifier circuit with patented feed-forward error correction topology eliminates all kinds of distortion and harmonic intermodulation.
          SR25

          Headphone-Zone-S.M.S.L-SH-9
          Headphone-Zone-S.M.S.L-SH-9
          Headphone-Zone-S.M.S.L-SH-9
          Headphone-Zone-S.M.S.L-SH-9

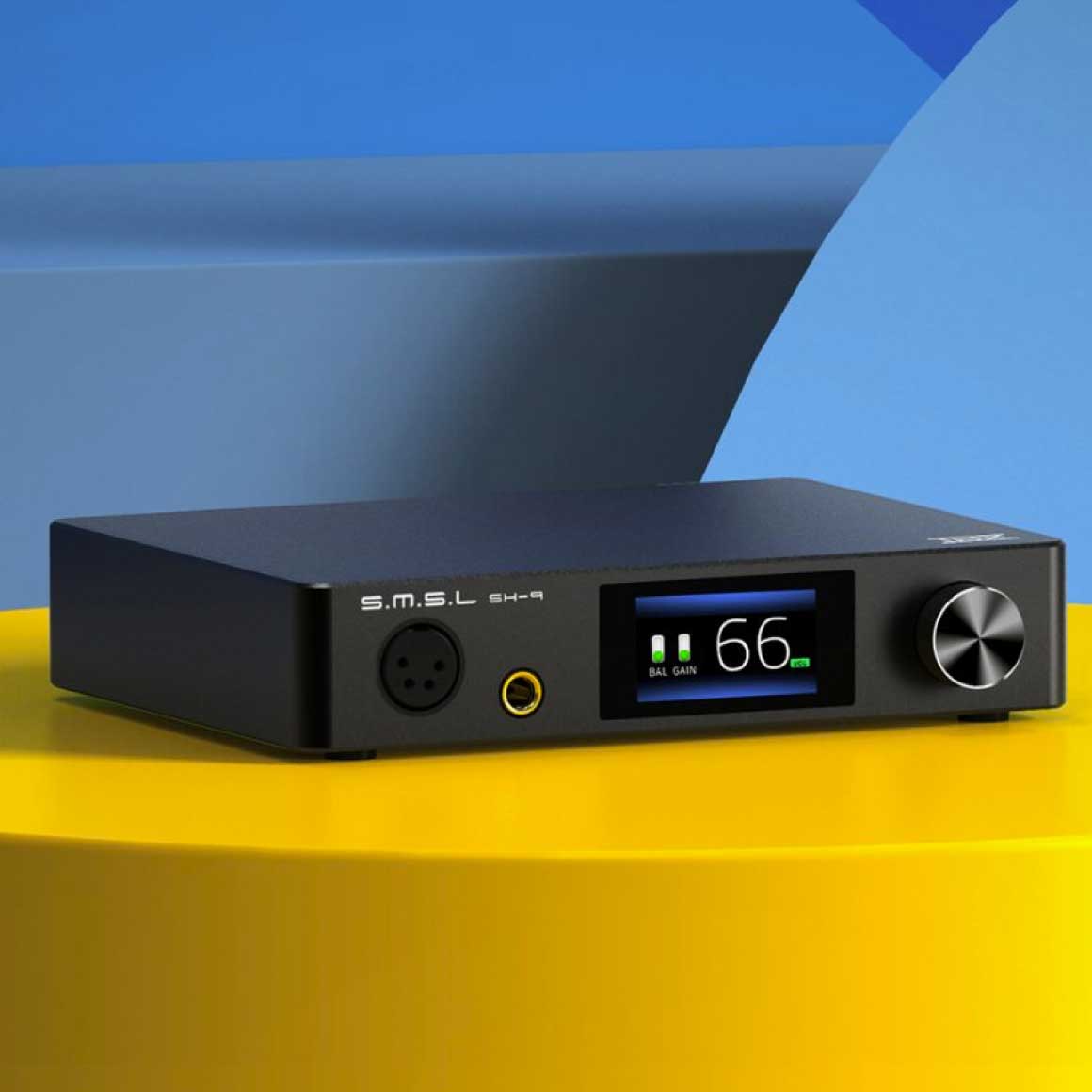

          A PERFECT DESKTOP SYSTEM WITH AN ULTRA-COMPACT ALUMINUM DESIGN

          Made out of precise CNC milled Aluminium Alloy, the body of the SMSL SH-9 sports an anodized and chamfered finish that not only adds to the charm but also makes the SH-9 durable. With high precision resistors, the SH-9 takes care of the temperature. You also get a high-quality 256 Bit high precision and low noise 256 level relay volume control with the SMSL SH-9. With S.M.S.L Patented 24W low noise high-efficiency power backup, the SH-9 delivers superb power-efficient performance.
          NOTE: In a real case scenario, extra bits are not eliminated to provide more linear volume.

          Headphone-Zone-S.M.S.L-SH-9
          Headphone-Zone-S.M.S.L-SH-9
          Headphone-Zone-S.M.S.L-SH-9
          Headphone-Zone-S.M.S.L-SH-9

          DISTORTION-FREE SOUND AND HIGH POWER FOR  HIGH-QUALITY  PURE SOUND

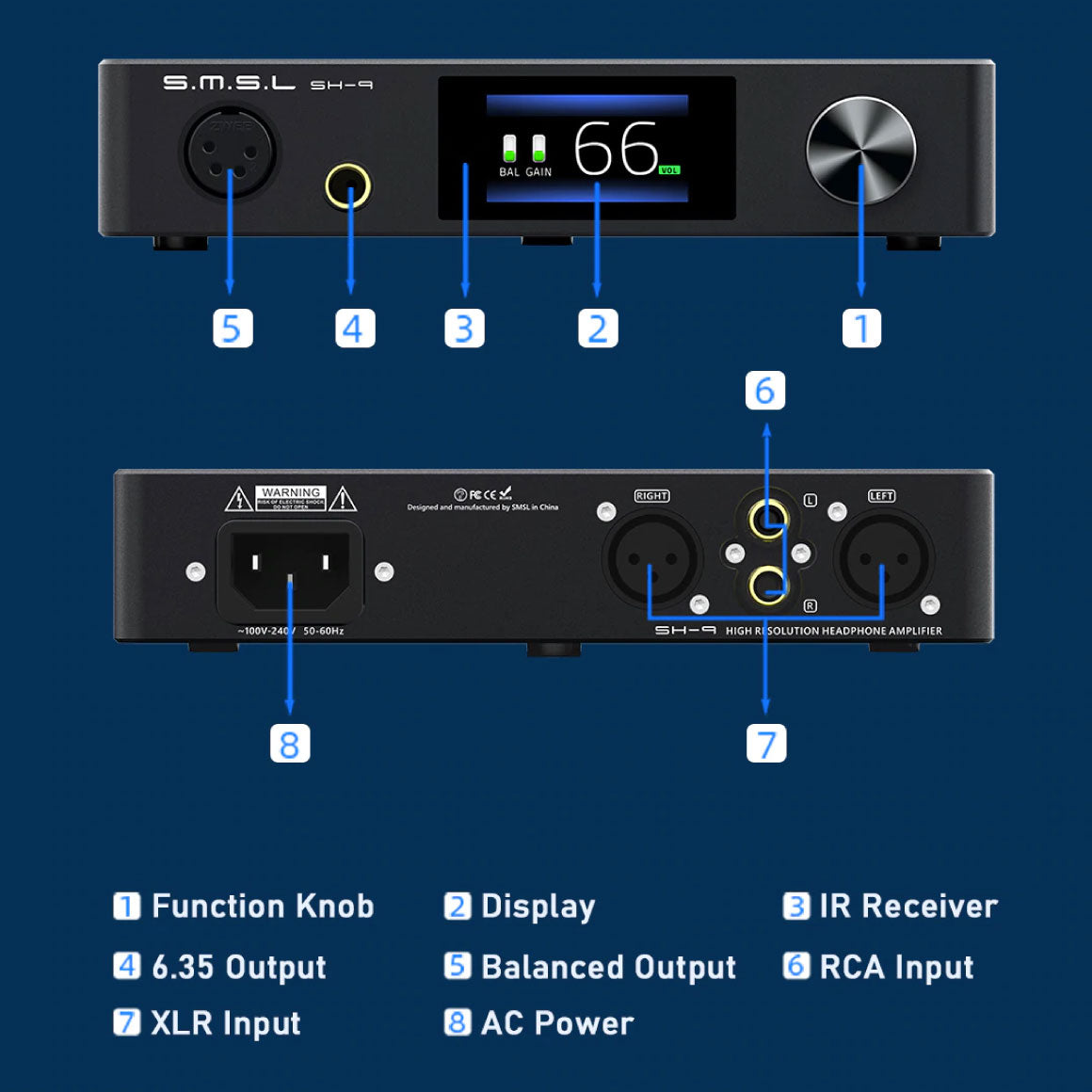

          With THD ≤0.00006 and SNR >137dB, the SMSL SH-9 ensures noise/distortion-free sound for the best possible music listening. This incredible Amp comes with a function knob, display, RCA input, balanced stereo line input and an IR receiver and also supports 6.35mm output and a balanced RCA input and a 3-Pin XLR balanced output. It can produce power of up 6 Watts into 16 Ohm, 3 Watts into 32 Ohm Headphones and comes with 2 positions with switchable gain control. The thermal protection on the Amp protects DC, over-voltage, over-current and short-circuit.

          Headphone-Zone-S.M.S.L-SH-9
          Headphone-Zone-S.M.S.L-SH-9
          Headphone-Zone-S.M.S.L-SH-9
          Headphone-Zone-S.M.S.L-SH-9

          SPECS

          AUDIO PART
          INPUTS Balanced x1, Unbalanced x1
          OUTPUTS Balanced x1, Unbalanced x1
          OUTPUT POWER 6W x 2 (16Ω)
          3W x 2 (32Ω)
          440mW x 2 (300Ω)
          220mW x 2 (600Ω)
          SNR 137dB, A-Weighted
          REMAINING NOISE 1.9uV, A-Weighted
          THD+N -123dB, 0.00006% (A-weighted)
          THD+N -117dB, 0.00013% (20-20kHz, 32Ω, -3dB)
          THD -125, 0.00006% (1kHz, 16Ω, -3dB)
          INPUT IMPEDANCE 47kΩ
          OUTPUT IMPEDANCE Near 0Ω
          FREQUENCY RESPONSE 0.1Hz-500kHz (-3dB)
          GAIN Low (+0dB), High (+10dB)
          OTHER PARTS
          VOLTAGE & FREQUENCY AC100-240V, 50-60 Hz
          ENERGY CONSUMPTION 24W
          STANDBY POWER <0.1W
          DIMENSIONS 187.5x154x40(mm)
          PACKAGING DIMENSIONS 282x232x79(mm)
          WEIGHT 790g
          Second Row
          IN THE BOX
          BOX CONTENTS 1. S.M.S.L SH-9 THX AAA-888 Balanced Headphone Amp

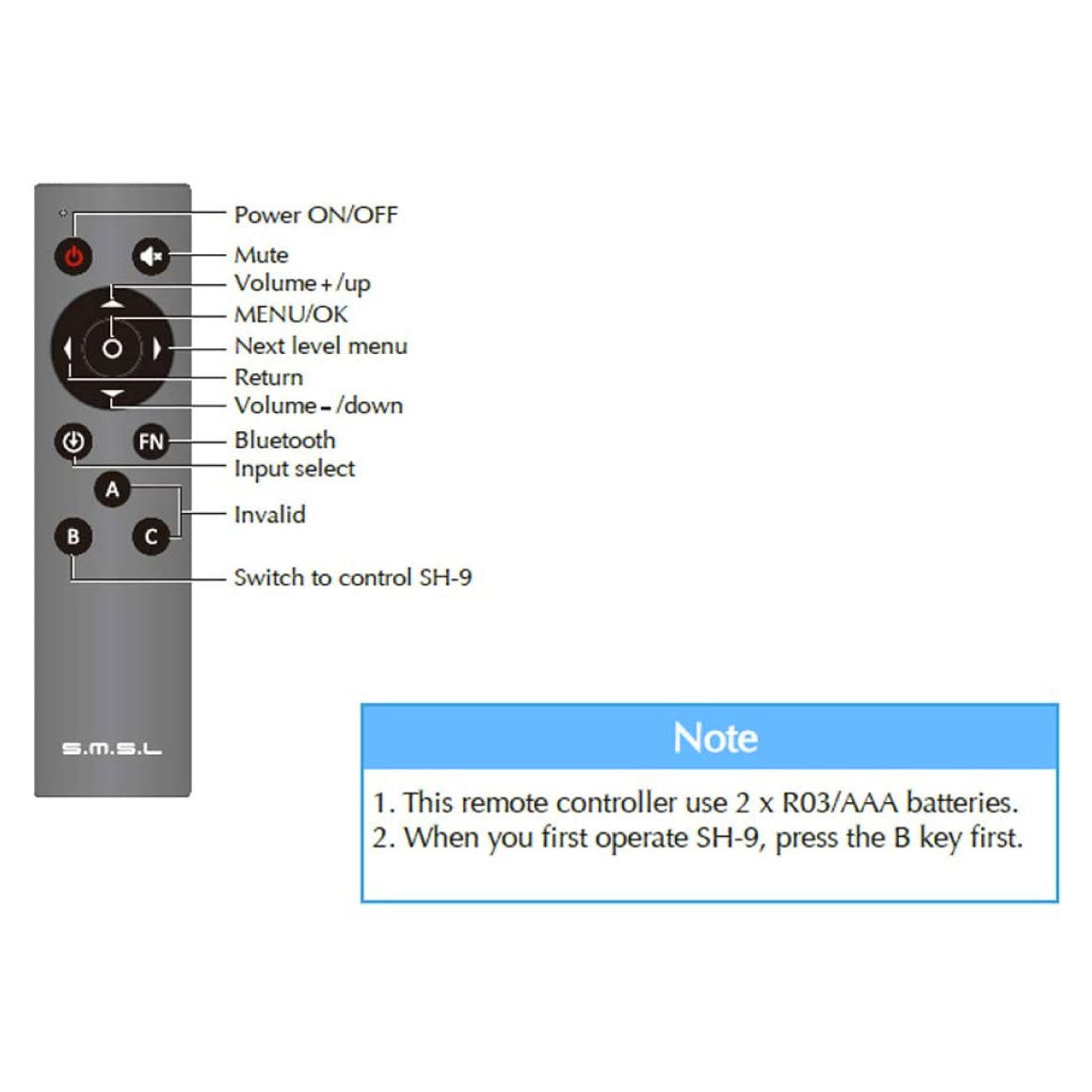

          2. Remote Control
          Headphone-Zone-S.M.S.L-SH-9
          Headphone-Zone-S.M.S.L-SH-9

          FAQs

          DOWNLOADS

        • User Manual
        • Warranty & Media Reviews

          1 Year Warranty

          Don't sweat it, this S.M.S.L SH-9 comes with a 1 year warranty from S.M.S.L that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

          Read more about S.M.S.L's warranty in India.
