Cayin - iDAC-6 MK2

89999.00
99999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Designed in
          China

          1 Year of
          Warranty

          Ideal for
          Audiophiles

          Ideal for
          Indoor Use

          Metal
          Build

          XLR
          Balanced Output

          ESS ES9028Pro
          DAC Chip

          DESCRIPTION

          Hi-Tech Configuration

          Being a successor model of Cayin iDAC 6, Cayin has worked fabulously in crafting Cayin iDAC 6 MK2 as making it hi-end Digital Analog Convertor with an electronic tube output stage delivers a high-performance supporting PCM streams up to 32-bit / 768 kHz and DSD 512. The Double DAC ESS ES9028Pro proves to be the accurate element in providing great music. The Cayin IDAC-6 MK2 optimizes channel separation and signal-to-noise ratio by implements both DACs in a fully symmetrical architecture.

          Dual Output

          The Cayin IDAC-6M2 DAC is desgined in a certain way which delivers two different outputs in order to fulfill listening needs each and every user. The first outpu stage consists of a transistor classic and the second uses four 6N1B electronic tubes. How lucky you would be to choose from a precise and dynamic sound to a chiseled or soft signature anytime you wish. With a built-in power amp, the output volume of Cayin IDAC-6 MK2 can be fixed or at a variable level.

          Screen Controller

          Cayin has made your life easier by adding the large screen controller to the DAC which helps you to seamlessly change the DAC settings, get information about the current stream, or select one of five digital filters to adjust the sound signature for getting an absolute hi-performance audio.


          Powerful Connectivity

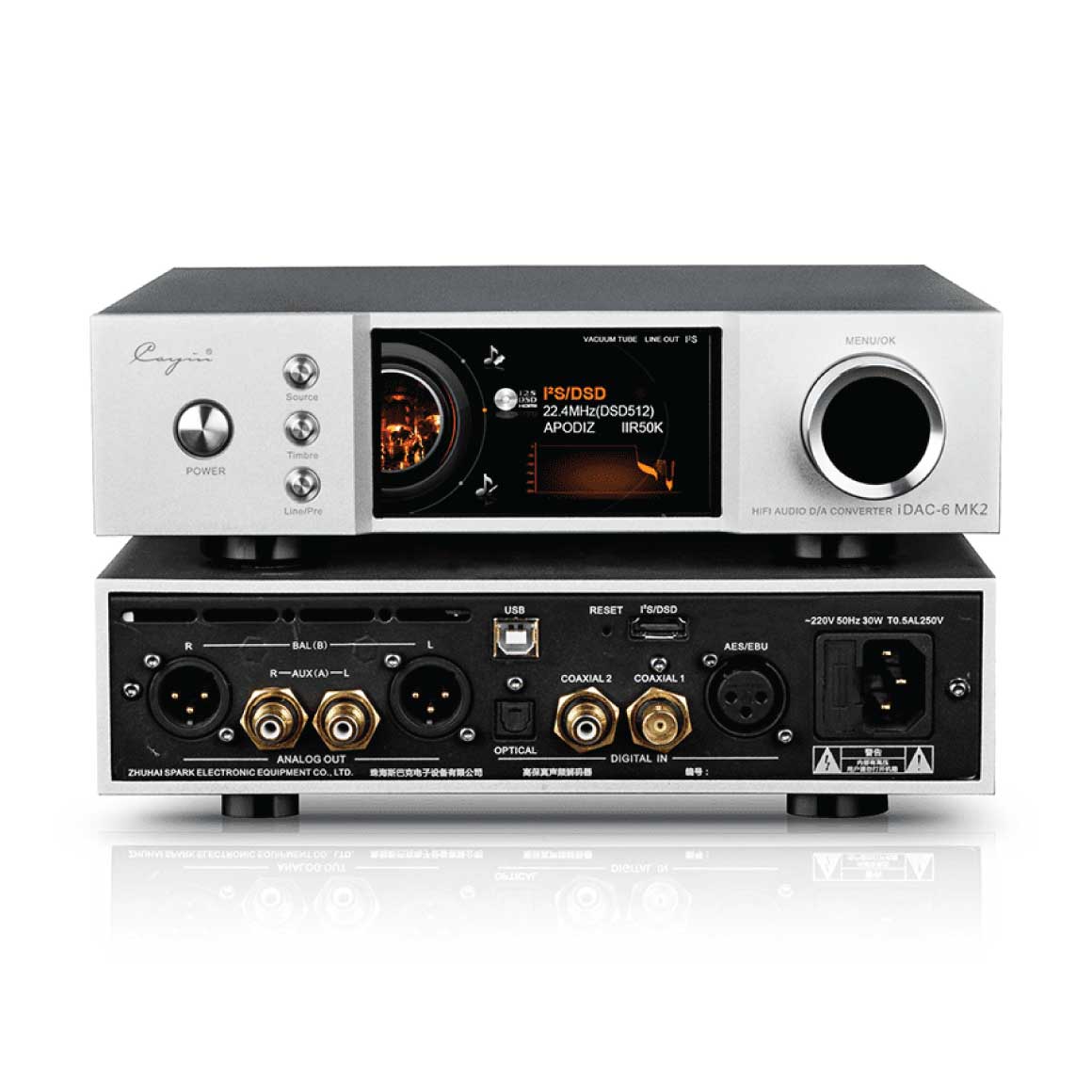

          Cayin has made your life easier by adding the large screen controller to the DAC which helps you to seamlessly change the DAC settings, get information about the current stream, or select one of five digital filters to adjust the sound signature for getting an absolute hi-performance audio. Cayin IDAC-6 MK2 DAC offers 6 digital inputs, including two coaxial inputs, an optical input, an AES / EBU input, an HDMI input , as well as a USB B input for reading music easily from a computer. On the output side, the DAC provides an analog RCA output and balanced XLR analog output which can ideally be associated with any HiFi amplifier or headphone amplifier.


          SPECS

          First Row
          PRODUCT INFORMATION
          DAC CHIPSET ES9028Pro
          OUTPUT VOLTAGE RCA: 2.2V RMS
          BAL: 4.4V RMS
          INPUTS
          AES / EBU, Optical, Coax: up to 24Bit / 192kHz, DSD64 (DoP)
          OUTPUT LINES AND PREAMP XLR (balanced), RCA (unbalanced, switchable tube / transistor)
          OUTPUT VOLTAGE Line: 2.2V + 2.2V RCA, 4.4V + 4.4V XLR transistor and tube
          Preamp: 7V + 7V RCA transistor, 6V + 6V RCA tube
          13V + 13V XLR transistor, 10V + 10V XLR tube
          TUBES 4 x 6N1B
          DIMENSIONS (W x D x H) 240mm x 252mm 69mm
          WEIGHT (kg) 3.8
          DISPLAY AMOLED/3.9-inch/680*360
          EXTERIOR MATERIAL Aluminum Alloy
          DIGITAL AUDIO INPUT SPECIFICATION
          INPUT MODE digital audio input specifications
          USB FORMAT PCM：16Bit-32Bit, 44.1kHz-768kHz
          DSD：DSD64-DSD512 (Native), DSD64-DSD512 (Dop)
          USB OPERATING SYSTEM Windows : Supported(cayin USB Driver V4.47.0 or above is required)
          macOS: Supported
          USB OPERATION MODE Asynchronous USB Audio Class 2.0
          USB DSD MODE Native and Dop Mode
          I²S FORMAT PCM：16Bit-32Bit, 44.1kHz-768kHz
          DSD：DSD64-DSD512
          AES/EBU FORMAT PCM：16Bit-24Bit, 44.1kHz-192kHz
          DSD：DSD64(Dop Mode)
          Input Impedance : 110 Ω
          COAXIAL (BNC/RCA) FORMAT PCM：16Bit-24Bit, 44.1kHz-192kHz
          DSD：DSD64(Dop Mode)
          Input Level : 0.5V@ 75Ω
          Input Impedance : 75 Ω
          OPTICAL FORMAT PCM：16Bit-24Bit, 44.1kHz-176.4kHz
          DSD：DSD64(Dop Mode)
          Second Row
          PRE OUT CIRCUIT SPECIFICATION
          SINGLE-ENDED SOLID STATE MODE Rated Output Level: 7V+7V (47kΩ On Load, Maximum)
          Frequency Response: 20-50kHz (±0.5dB , Fs= 192kHz)
          THD + Noise: ≤0.002%(1kHz Signal, Fs= 192kHz, A-Weighting, Volume 81)
          Dynamic Range: ≥122dB (1kHz Signal, A-Weighting)
          Signal to Noise Ratio: ≥122dB (1kHz Signal, A-Weighting)
          Channel Isolation: ≥92dB
          Output Impedance: ~10 Ω(Output 2.3V @47Ω on Load)
          SINGLE-ENDED VACUUM TUBES MODE Rated Output Level: 6V+6V (47kΩ On Load, Maximum)
          Frequency Response: 20-50kHz (±0.5dB , Fs= 192kHz)
          THD + Noise: ≤0.8%(1kHz Signal, Fs= 192kHz, A-Weighting, Volume 81)
          Dynamic Range: ≥115dB (1kHz Signal, A-Weighting)
          Signal to Noise Ratio: ≥115dB (1kHz Signal, A-Weighting)
          Channel Isolation: ≥92dB
          Output Impedance: ~300 Ω(Output 2.2V @47Ω on Load)
          BALANCED SOLID STATE MODE Rated Output Level: 13V+13V (47kΩ On Load, Maximum)
          Frequency Response: 20-50kHz (±0.5dB , Fs= 192kHz)
          THD + Noise: ≤0.002%(1kHz Signal, Fs= 192kHz, A-Weighting, Volume 81)
          Dynamic Range: ≥122dB (1kHz Signal, A-Weighting)
          Signal to Noise Ratio: ≥122dB (1kHz Signal, A-Weighting)
          Channel Isolation: ≥92dB
          Output Impedance: ~20 Ω(Output 4.5V @47Ω on Load)
          BALANCED VACUUM TUBES MODE Rated Output Level: 10V+10V (47kΩ On Load, Maximum)
          Frequency Response: 20-50kHz (±0.5dB , Fs= 192kHz)
          THD + Noise: ≤0.8%(1kHz Signal, Fs= 192kHz, A-Weighting, Volume 81)
          Dynamic Range: ≥115dB (1kHz Signal, A-Weighting)
          Signal to Noise Ratio: ≥115dB (1kHz Signal, A-Weighting)
          Channel Isolation: ≥92dB
          Output Impedance: ~1000 Ω(Output 4.6V @47Ω on Load)
          LINE OUT CIRCUIT SPECIFICATION
          SINGLE-ENDED SOLID STATE MODE Rated Output Level: 2.2V+2.2V (47kΩ On Load, Maximum)
          Frequency Response: 20-50kHz (±0.5dB , Fs= 192kHz)
          THD + Noise: ≤0.003%(1kHz Signal, Fs= 192kHz, A-Weighting)
          Dynamic Range: ≥115dB (1kHz Signal, A-Weighting)
          Signal to Noise Ratio: ≥115dB (1kHz Signal, A-Weighting)
          Channel Isolation: ≥92dB
          Output Impedance: ~10 Ω
          SINGLE-ENDED VACUUM TUBES MODE Rated Output Level: 2.2V+2.2V (47kΩ On Load, Maximum)
          Frequency Response: 20-50kHz (±0.5dB , Fs= 192kHz)
          THD + Noise: ≤0.8%(1kHz Signal, Fs= 192kHz, A-Weighting)
          Dynamic Range: ≥110dB (1kHz Signal, A-Weighting)
          Signal to Noise Ratio: ≥110dB (1kHz Signal, A-Weighting)
          Channel Isolation: ≥92dB
          Output Impedance: ~300 Ω
          BALANCED SOLID STATE MODE Rated Output Level: 4.4V+4.4V (47kΩ On Load, Maximum)
          Frequency Response: 20-50kHz (±0.5dB , Fs= 192kHz)
          THD + Noise: ≤0.003%(1kHz Signal, Fs= 192kHz, A-Weighting)
          Dynamic Range: ≥121dB (1kHz Signal, A-Weighting)
          Signal to Noise Ratio: ≥121dB (1kHz Signal, A-Weighting)
          Channel Isolation: ≥92dB
          Output Impedance: ~20 Ω
          BALANCED VACUUM TUBES MODE Rated Output Level: 4.4V+4.4V (47kΩ On Load, Maximum)
          Frequency Response: 20-50kHz (±0.5dB , Fs= 192kHz)
          THD + Noise: ≤0.8%(1kHz Signal, Fs= 192kHz, A-Weighting)
          Dynamic Range: ≥120dB (1kHz Signal, A-Weighting)
          Signal to Noise Ratio: ≥120dB (1kHz Signal, A-Weighting)
          Channel Isolation: ≥92dB
          Output Impedance: ~1000 Ω
          IN THE BOX
          BOX CONTENTS
          Cayin iDAC 6 MK2 DAC

          Warranty

          Don’t sweat it, This Cayin product is covered by a 1 Year manufacturer's warranty.
